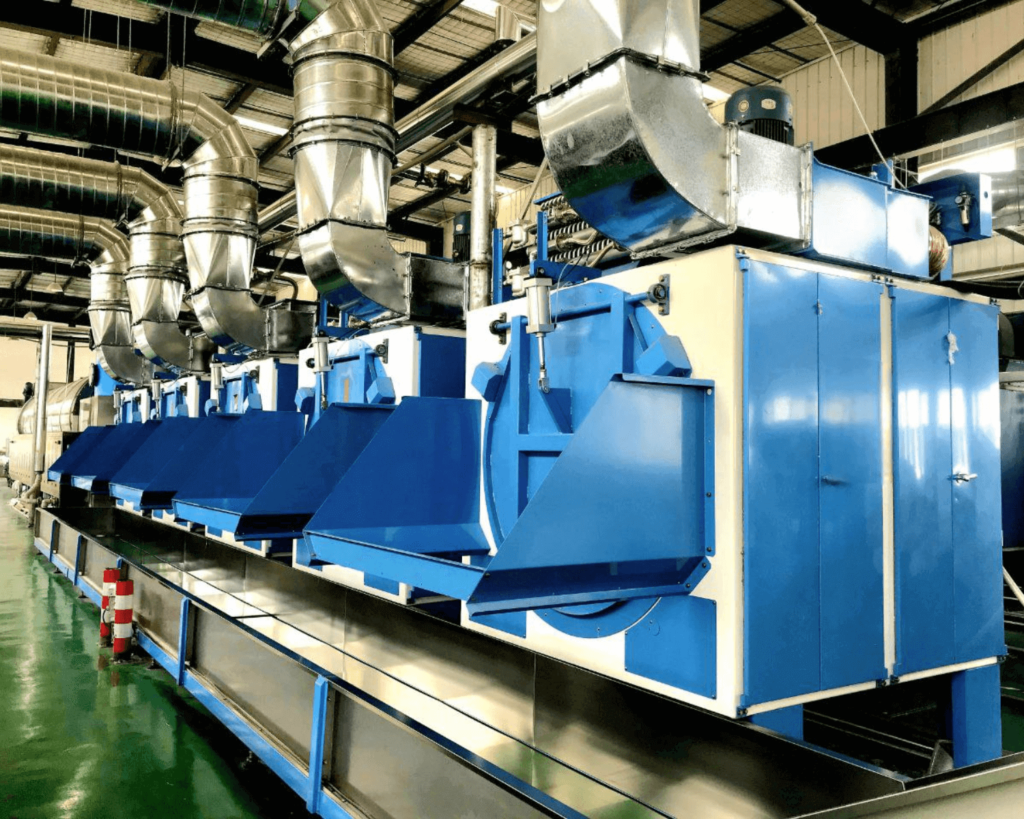

BATCH DRYER

Batch Transfer Drying Tumbler

Automated Drying: Designed for fully automatic shaking and drying (pre and full) of water-extracted linen batches.

Flexible Integration: Seamlessly integrates with complete washing systems (extraction presses, centrifugal extractors, tunnel washers). Can also operate as a standalone unit.

Space-Saving Design: Allows for "mirror positioning" of two dryers side-by-side.

Heating Options: Available with steam or gas heating.

Optimized Efficiency: Achieves high productivity with low media consumption. Features a sealed and insulated housing to minimize heat loss. Multi-layered loading, unloading, and revision doors further reduce heat loss.

Low Maintenance: Engineered for minimal maintenance effort.

Control System

Independent Control: Each dryer has its own switch panel with PLC control and dedicated power supply.

Centralized Management: A separate compound control system links all dryers for unified operation and programming.

User-Friendly Interface: A panel PC with a color touch screen visually operates and controls the dryers and any transport conveyors.

Remote Support: An integrated Ethernet interface allows the Transferon service helpdesk to perform remote maintenance.

Standalone Operation: Dryers used independently are equipped with a smaller graphic operating terminal.

Programmable Cycles: Each dryer offers 100 freely programmable programs.

Available Options

Cool-Down Methods: Choose between cool-down via a partially opened loading door or a fresh air flap.

Heat Recovery: Air recirculation device for heat recovery (standard on gas-heated models).

Precise Temperature Control: Motor control valve for steam-heated dryers, ideal for temperature-sensitive linen.

Automatic Lint Removal: Available with a collection bag (remote for individual dryers or central suction for multiple dryers).

Maintenance Platform: Includes a handrail on the dryer's unloading side for safer maintenance.

Higher Pedestal: Option for a taller pedestal (standard height is 1025 mm).

Mechanical Design

Optimized Airflow & Evaporation: High drum volume with a large perforated surface ensures excellent airflow and high evaporation performance.

Variable Drum Speed: Drum rotation speed is precisely controlled by frequency regulation, adapting to the specific program.

Easy Drum Access: The entire loading wall pivots, providing straightforward access to the drum.

Unique Sealing Concept: Designed to prevent jamming of even delicate linen types; all seals are easily accessible for maintenance.

Smooth & Durable Operation: Inner drum features machined path rings for smooth operation and extended gear element lifespan.

Robust Drum Wheels: Drum wheels are resistant to high temperatures and designed for substantial bearing force.

Durable & Insulated Housing: Stable, well-insulated steel plate housing with wide-opening revision doors for easy maintenance.

Accessible Maintenance Points: All maintenance positions are easily accessible.

Fast Unloading: A tilting device, including an exhaust duct-separator, facilitates quick unloading of linen batches.

Low-Maintenance Gear: Direct drum gear requires no greasing or tightening of chains or belts, simplifying maintenance.

Precise Temperature Control: Gas-heated dryers feature modulating burners for accurate temperature regulation.

Jam-Free Loading: The loading door closes upwards to prevent linen from getting jammed.

Safety Feature: Includes a sprinkler device for gas-heated dryers.

Flexible Connections: Accommodates flexible media connections for steam and gas.

Removable Drum Plates: Inner drum features removable segment plates.

Automatic Guide Rollers: Inner drum has automatically tuned guide rollers.

* Due to continuous R&D, all specifications are subject to change without prior notice.
