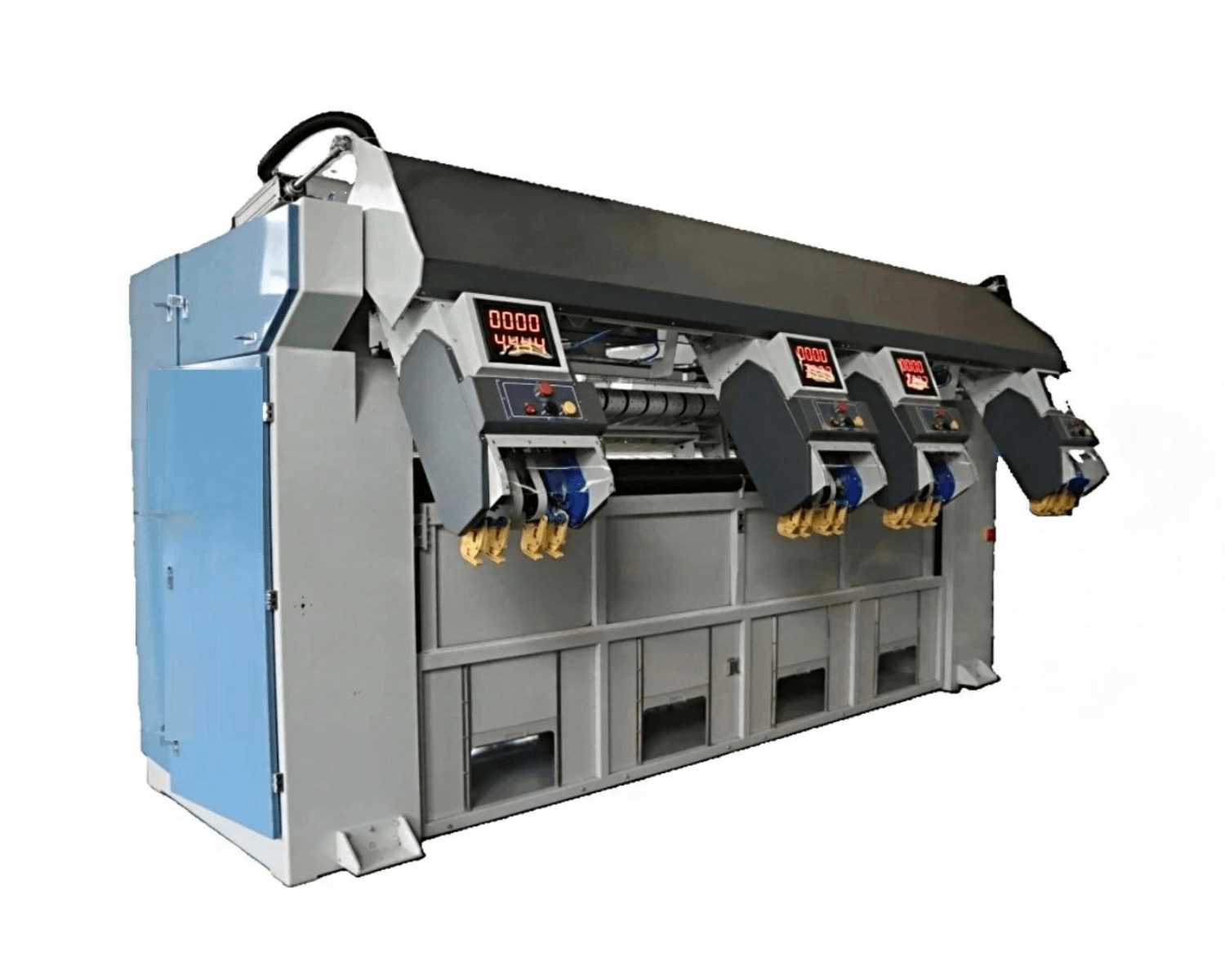

Clamp Feeder

Flatwork Finishing Technology

CLAMP FEEDER

Advanced Control and Seamless Integration

Intuitive Control System: Features a sophisticated PLC control system and a user-friendly 10-inch colorful touch screen.

Data Management: Store over 100 customer data profiles and access more than 20 pre-set programs for efficient operation.

Reliability & Updates: The system is continuously improved with software updates for maturity and reliability.

Global Accessibility: The Human-Machine Interface (HMI) is easy to navigate and supports eight different languages simultaneously.

Operational Insights: Each working station includes a statistics function to accurately count feeding quantity, providing valuable data for workflow optimization and management reporting.

Precision Feeding Mechanism

Secure Grip: Robust transferring clamps firmly secure the leading edge of any item, handling even the heaviest textiles like duvet covers and king-sized sheets.

Seamless Transfer: Linen is transferred to two sets of servo-driven spreading clamps.

Swift & Accurate Spreading: These spreading clamps operate on motor-driven toothed belts, ensuring quick and precise spreading.

Enhanced Efficiency: Spreading clamps can immediately transfer a spread item and pick up the next from three available stations, significantly increasing clamp availability and boosting overall efficiency.

Key Features

High Productivity
  • Ergonomic loading stations are height-adjustable for maximum operator comfort and productivity with minimum effort.
  • Available with 3 or 4 stations for optimal ironer application and high per-capita performance.
  • Items are fed, transferred, width-measured, and then spread with optimized speed and force based on item type and width.
Superior Quality Feeding
  • Achieves top-quality feeding and high capacity through pivoting spreading clamps.
  • These clamps receive linen vertically from feeding stations and feed it onto the vacuum beam at a horizontal angle, resulting in a straight leading edge.

* Due to continuous R&D, all specifications are subject to change without prior notice.
