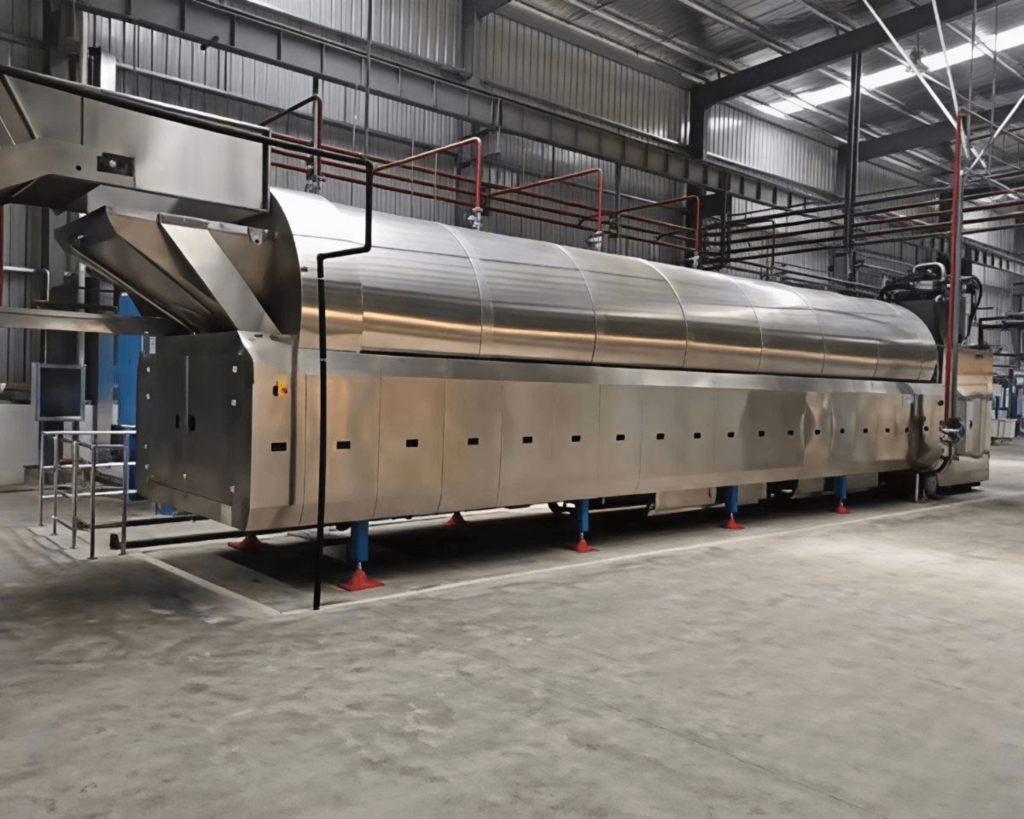

Tunnel Washer

Transferon Advantage

Born from 50 years of European engineering and refined over 40 years of continuous improvement, this system offers unparalleled efficiency. Experience significant labor savings with single-operator functionality, reduced power consumption, high throughput of 26-32 cakes/hour, and low water usage of 1.7-5.5L per kg of linen.

It works continuously (or in batches) and is mostly used in places like textile factories, laundromats, and industrial laundry operations, where processing large quantities of fabric or clothing is essential.

Engineered to Last

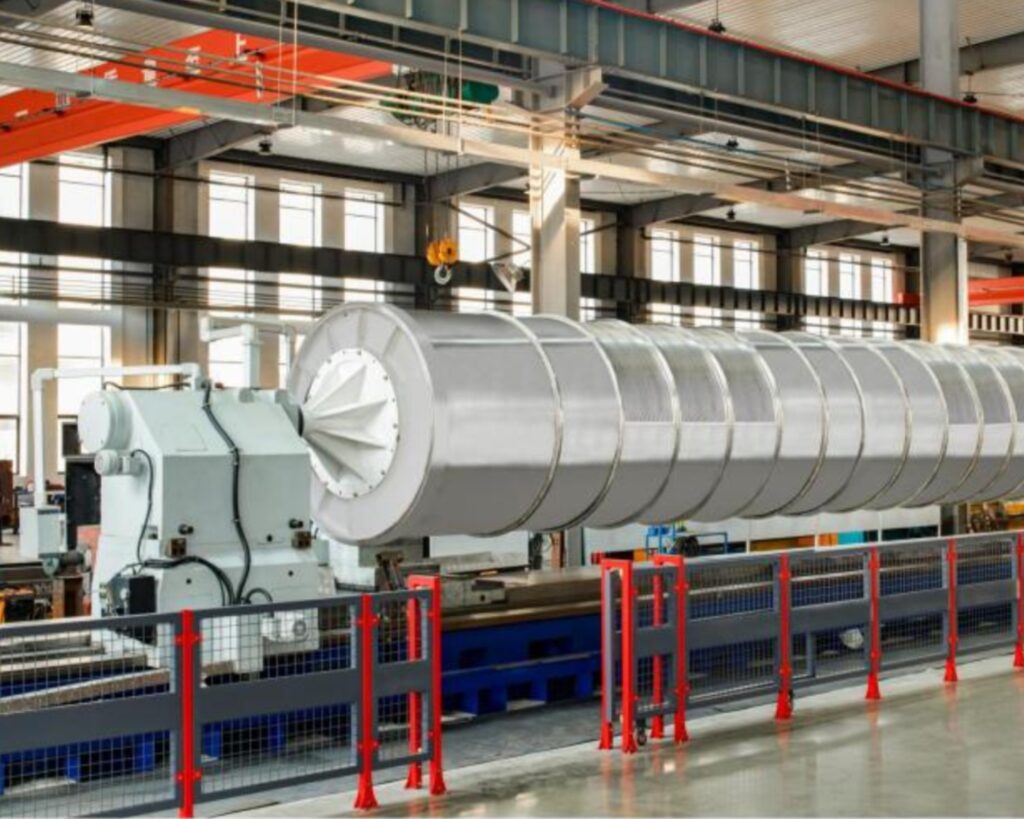

Engineered for longevity and performance, the tunnel washer features a 4mm thick, 304 stainless steel inner drum, exceeding typical industry standards.

A 25mm+ thick SS304 sealing flange ensures structural integrity during high-frequency rotation. Handmade arc welding creates a smooth inner drum, protecting delicate linens.

Precision CNC machining maintains a drum line bounce within 30 dmm, and fine-ground sealing surfaces guarantee leak-free operation, extending seal life and minimizing noise.

The Transferon’s bottom transfer system further reduces blockage and linen damage.

Equipment Structural Chassis

Robust Frame: Constructed with heavy-duty 200x200mm H-beam steel for superior strength and deformation resistance.

Long-Term Corrosion Protection: Hot-dip galvanized base for 50 years of anti-corrosion and anti-rusting.

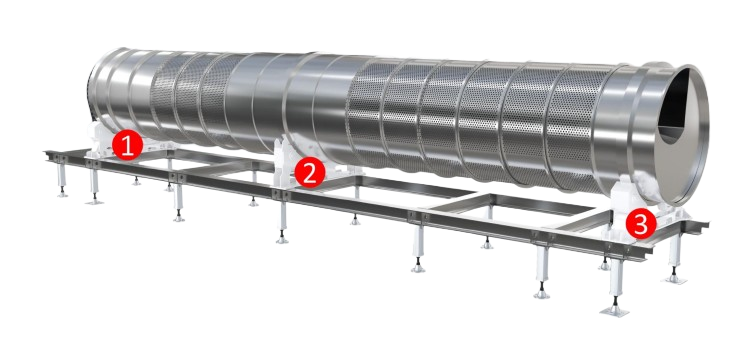

Optimized Transmission Support: Three-point support for models with More than 16 compartments to prevent deformation, cracking, and leaks. Two-point support for models with less than 16 compartments, also designed for stability.

Engineered for Efficiency

Rapid Water Intake: DN65 main inlet, DN50 compartment inlets, requiring only 3 bar water pressure.
Fast Drainage: 114mm individual drains, 140mm main drain, preventing linen transfer delays.
Simultaneous Drainage: Main drain design allows all chambers to drain concurrently.
Precise Linen Transfer: Chamber-to-chamber transfer controlled within the cycle time for consistent operation.
Efficient Heating: Three independent heating chambers in the main wash for rapid, separate heating.
Variable Frequency Drive: Keep the power consumption minimum at same time giving maximum output.

World Class Cleaning Design

True Counter-Flow Rinsing: Bottom counter-flow technology prevents cross-contamination.
Extended Main Wash: Extended Main Wash: 7-8 chambers, 14-18 minute cycle for thorough cleaning.
Patented Lint Filtration: Circulating water filter improves rinse and recycled water quality.
Thermal Insulation: Main wash and neutralization chambers maintain 5-10 degree temperature difference.
Powerful Mechanical Action: 200 to 270-degree drum swing, 11 to 14 swings per minute.
Dedicated Recycled Water Tanks: Separate alkaline, acidic, and rinse/neutralization tanks for targeted water reuse.

Engineered for Saving Resources & Energy

Recycled Water Efficiency: Filtering, double drum counter-flow rinsing, and external control valves minimize water use (4.0-6L/kg linen).

Reduced Steam Consumption: Hot water pipelines directly supply heated water for main wash and neutralization.

Thermal Insulation: Minimizes temperature loss and steam consumption, preserving linen whiteness.

Intelligent Weighing: Proportional water and detergent addition based on actual linen weight.

* Due to continuous R&D, all specifications are subject to change without prior notice.
